| Power |
Electronic |
| Place of Origin |
Shanghai China (Mainland) |
| Brand Name |
V&A |
| Model Number |
VA600 |

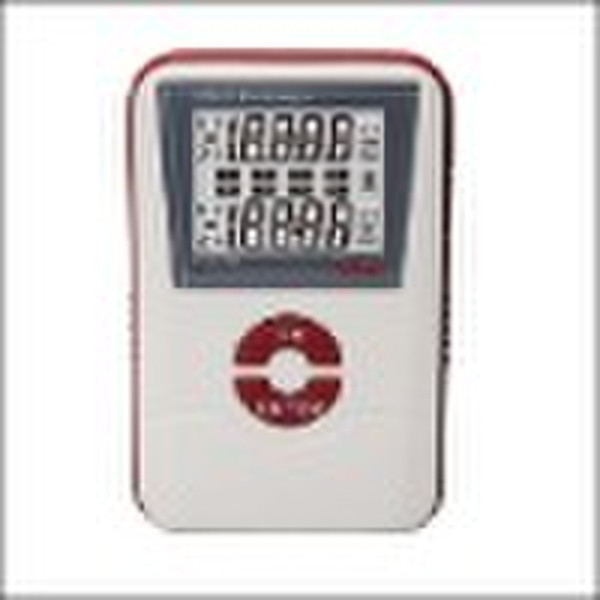

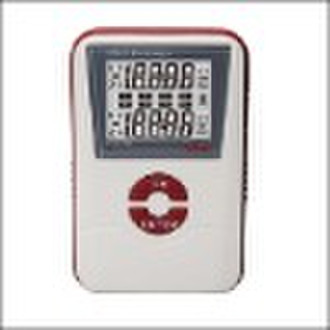

Multi-function record meter is a new record meter designed for the actual demand of various industrial site, which integrating display, processing, records, calibration, accumulate, alarm functions etc. It can be used to measure the voltage, low current (0-24mA), high current (0 600A), temperature (thermocouple), temperature (thermal resistance RTD), etc. Features: 1. Long time record 2. USB port connect to PC to browse the recording data, and generation curve, export the file with TXT/excel format. 3.Maximum/minimun display and alarm function 4.Low power indication,Real-time clock RTC, Auto dormancy and wake up function 5. Online measure simulate digital output module, such as 0 5V and 4 20mA output 6. Receive various input signal as thermocouple, RTD, current and voltage etc. 7. (0 24)mA,(0 600)A output signal to choose; 8. Auto power off Specifications: Temperature (built-in NTC):-30 +60°C ±1°CHumidity: 20 90%RH ±3%RHVoltage: DC 0 10V ±0.02VAC 0 600V ±1.0VCurrent: DC 0 24mA ±0.05mACurrent (built-out clamp head):AC/DC 0 600A ±1 2.5%Temperature (outer thermocouple):K J T -200 1000°CBellow ±1.2°C, ±0.4% include cold endTemperature (built-out platinic resistance):PT100 -200 1000°CPT1000 -200 1000°C±0.5%, ±0.5°C
